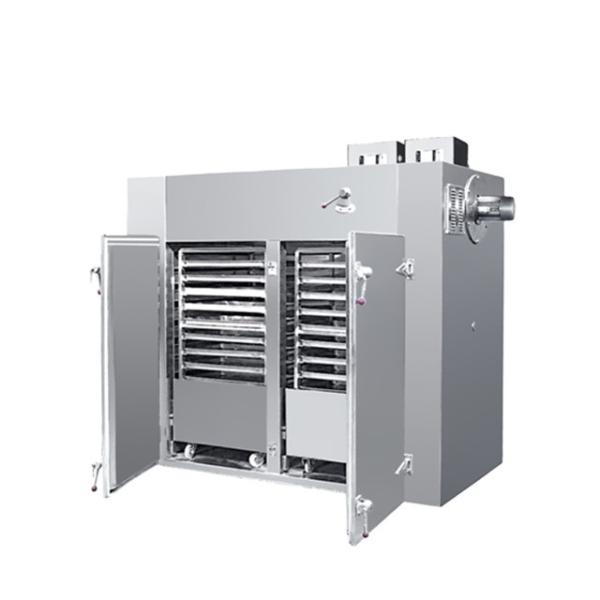

Fruit Vegetables Pharmaceutical Dryer Tablet Hot Air Circulation Oven

Name: Fruit Vegetables Pharmaceutical Dryer Tablet Hot Air Circulation Oven
Brand: LTPM China
Price: 1 USD

Wholesale Fruit Vegetables Pharmaceutical Dryer Tablet Hot Air Circulation Oven from china suppliers

Brand Name : LTPM China

Model Number : CTC Series

Certification : CE, GMP

Place of Origin : China

MOQ : 1set

Payment Terms : L/C, T/T

Supply Ability : 25sets/month

Delivery Time : 25days

Packaging Details : Export standard wooden case

Drying quantity per time (kg) : 25-200

Power of blower fan (kw) : 0.45-1.1

Consumed steam(L/min) : 5-40

Drying cart (pcs) : 0-2

Drying pan(pcs) : 24-96

Machine Size (mm) : 1550-2300*1000-2200*2044-2433

Upper and lower temp. difference : ±2

Service temperature : electrical heating 50-350℃

Contact Now

The machine is widely used for heated drying or dehumidifying of materials in such industries as medicine, food and chemical
industry.
Its working principle is that it uses steam or electric heater to heat the air, and then the heated air carries out circulated drying of materials. The temperature difference between any places in the oven is low and the drying is even. During the drying process, fresh air is supplied and wet and hot air is discharged continuously, so proper temperature is maintained inside the oven, making the drying process always under the best status.
Fruit Vegetables Pharmaceutical Dryer Tablet Hot Air Circulation Oven

Machine Features

Most air stays inside the oven, so the heat efficiency is high and energy is saved.
In order to reinforce ventilation, the adjustable air distributor can be allocated inside the oven. The raw materials can be evenly dried. The heat source can be steam, hot water or electric far infrared.
lt has such features as low noise, stable running, automatic temperature control and convenient installation and maintenance.
With a wide application range, it is suitable for various raw materials. It is an ideal dryer.

Technical Data

Model & spec.	Drying quantity per time (kg)	Power of blower fan (kw)	Consumed steam(L/min)	Drying cart (pcs)	Drying pan(pcs)	Machine Size (mm)	Upper and lower temp. difference
CTC-0	25	0.45	5	0	24	155010002044	±2
CTC-1	100	1.1	20	2	48	230012002433	±2
CTC-2	200	1.1	40	2	96	230022002433	±2
